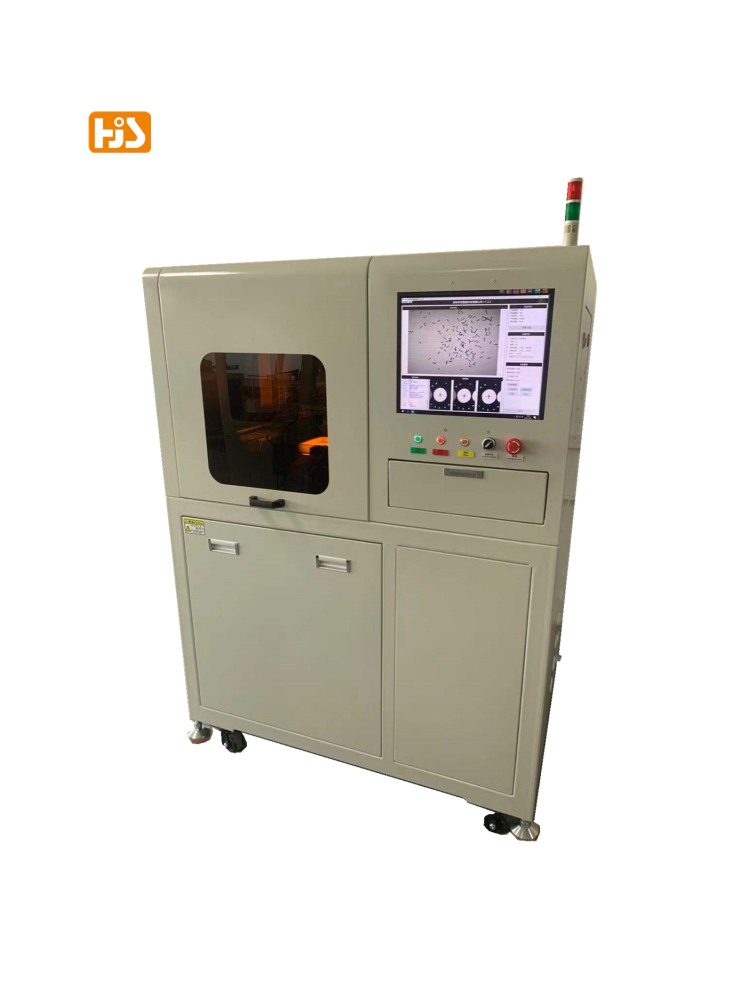

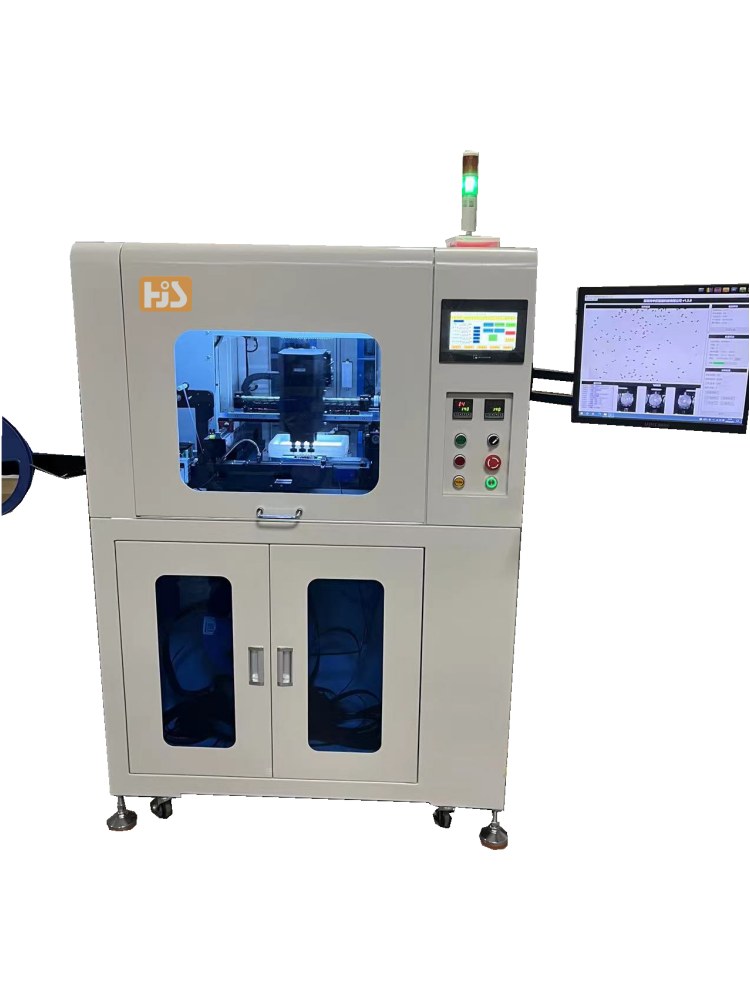

Flexible Bowl Feeder Tape and Reel Machine HJC-320
Name: Automatic tape and reel machine with flexible feeder
Model: HJC-320
Use: suitable for small size IC/metal pins/metal dome/spring/plastic parts taping;
Set up is simple via computer interface. One machine can be compatible for different spec components.
Production data and operation log can be exported.
flexible feeder tape and reel machine|tape and reel machine|smt tape and reel machine|automatic tape and reel machine|tape and reel packaging|tape and reel feeder
Features:
- Perfect for automotive, cosmetic, electronic, medical and any application featuring varied parts and frequent changeovers. One Flexible Feeder can replace several conventional feeders on your line.
- Visual part recognition frees you from the limits of mechanical feeding, speeding up configuration and eliminating the need for manual feeder calibration.
- HJS Flexible Feeder Solution’s integrated vision architecture also allows for high speed latching of robot positions and a reduction in cycle time for products requiring fast inspection and orientation after pick up.
Work flow of the equipment:

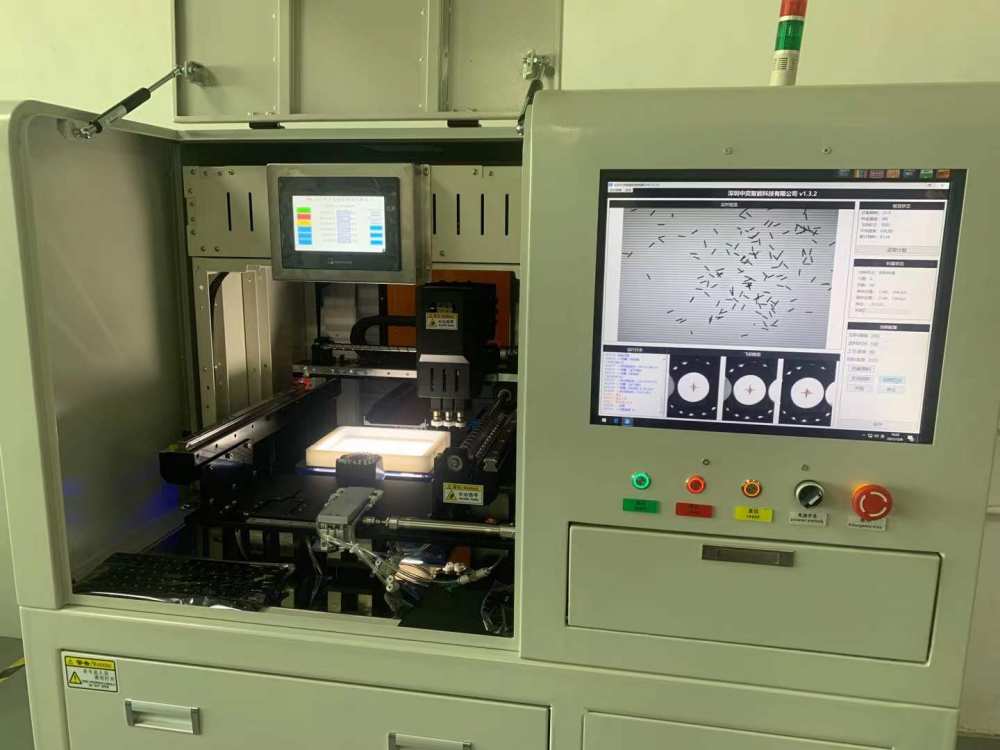

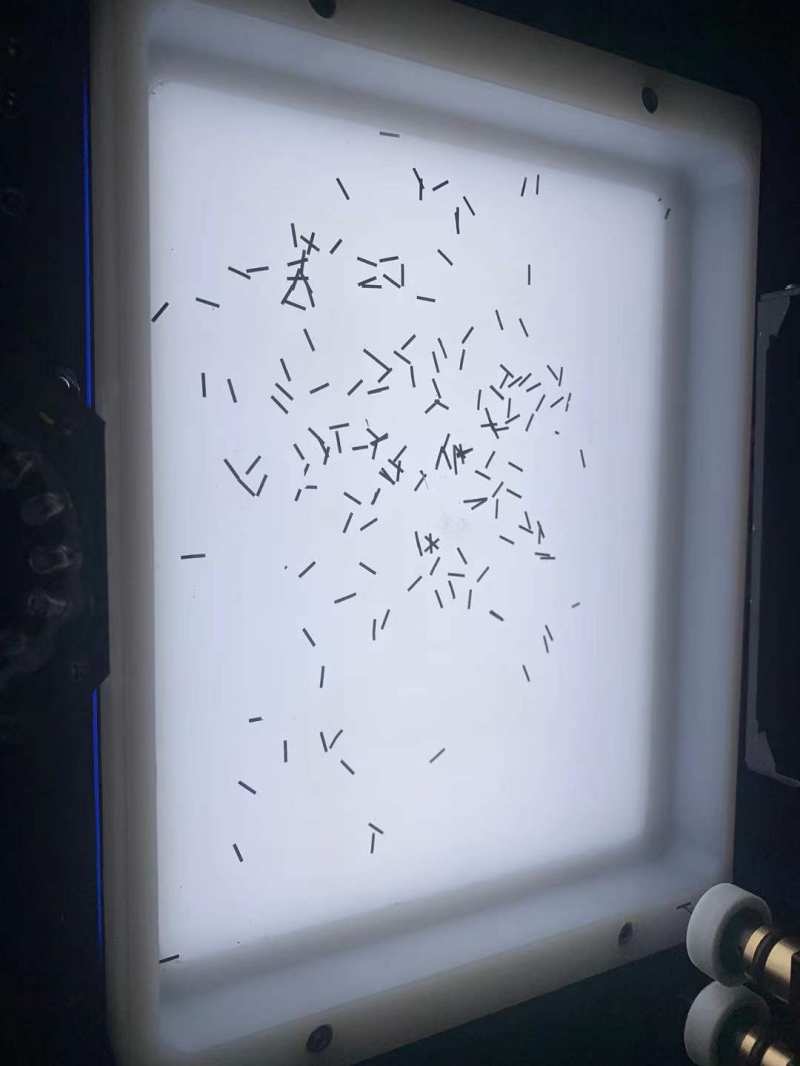

Manually put the bulk materials on the feeder platform —> Flexible feeder vibrates —>CCD check position and pick correct component —>CCD recheck component position —> NG collect —> OK put in carrier tape —> hot sealing and collecting carrier tape in reel.
Spec:
|
Item |
Parameter |
|
Outsize |
L1700* W900*H1800 mm |
|
Weight |
650kg |
|
Power |
AC220V，50HZ； |
|
Air |
4-6 kg/cm² |
|
Wheel |
EIA-481A standard 13/15/22 inch wheels |
|
Carrier tape |
8~24mm complied with EIA 481 standard |
|
Temperature |
Sealing temperature adjustable in 50℃－200℃ |
|
Machine speed(UPH) |
3K/H (decided by component spec) |
|
Counting |
Internal system pulse |
|
Sealing |
Hot sealing/self-adhesive |
|
Workroom |
Dust-free workroom,0℃≦ temperature ≦50, |
Options:
- Besides from flexible feeder to carrier tape, machine can be designed as from flexible feeder to tray/waffle tray
From feeder to tray:
