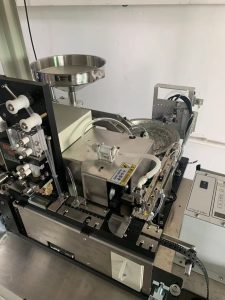

Automatic Tape and Reel Machine with Bowl Feeding HJC-007S
Name: Automatic Tape and Reel Machine with Bowl Feeding HJC-007S/ Metal pin tape and reel machine/ Metal dome tape and reel machine/ switch and relay tape and reel machine/ battery pin tape and reel
Use: the taping packages of a variety of surface mounting devices (SMD); bowl feeder customized per component specification;
Set up is simple via touch screen interface, 2D CCD inspection is optional.
bowl feeder tape and reel machine|automatic bowl feeder tape and reel machine|bowl feeder for smt tape and reel|metal parts tape and reel|metal dome packing|relay and switch tape and reel|spring tape and reel|mylar taping|
Components are automatically fed by vibrating bowl. Nozzle pick up components and place into carrier tape and seal. Applicable to a large number of electronic components, connectors,hardware, plastic rubber and other products suitable for carrier tape packaging.
According to the customer’s technological requirements, besides the basic tape and reel function, it can also add image detection, electrical performance testing and other functions.
1. Vibrating bowl realizes automatic feeding of products
2. The manipulator sucks the product from the vibrating bowl to the carrier tape.
3. Taping module completes the sealing of tape
4. Touch screen for machine operation
|Model||HJC-07S Auto Component Taping Machine|
|Feeding||Rubber reel or paper reel conforming to EIA-481 standard|
It is suitable for automatic taping of various electronic components, connectors, hardware, plastic rubber and other products.
|Control system||Programmable Logic Controller+Touch Screen+Step Motor|
|Temperature control||PID Temperature Control|
|Taping speed||3K-15K UPH per hour (determined by product type)|
|Package type||Suitable for hot and cold seals|
|Selective configuration||Image Detection System and Electrical Performance Testing System|
|Weight||160KG (Vibratory disc)|
|Power supply||AC220V / 50Hz|
|Carrier tape empty alarm||available|
|Cover tape empty alarm||available|
|Empty pocket detection||available|
|Counter Qty/Reel||available(software auto count)|
|Component Orientation alarm||Non standard configuration/Optional sensor and image detection system|
|Carrier to cover weld strength check||Need “Peel force tester” for check|
|Setup time for reel changeover||2~3minutes|
|Setup time for model changeover with different tape width||2~3minutes|
|Machine supply lead time||around 30days (customized per component size and customer requirement)|
- Machine can be dual bowl feeders, which can improve speed;
- 2D camera can be added for component orientation or mixing detection;
