Automatic Reel Changer

Name:Automatic reel changer

Model: ARC-M07   ARC-07   ARC-13  ARC-07/13

Use: Instead of manual operation at the packaging station, after taping machine complete a reel, ARC machine automatically cuts off the carrier tape and pastes the tail glue, replaces with new reel. And inserts carrier tape into the new reel to continue production.

reel changeover equipment|reel changer machine|smt reel changer|tape and reel changer|pick and place reel changer|handler ARC



Improve the efficiency of  T&R
1. Avoid productivity loss caused by the operator’s 2-hour meal every day.
2. Avoid the loss of productivity caused by busy or temporarily absent operators.

Improve production quality
1. At present, each operator can only look at 3-4 packaging machines. Often, when operators are operating other things, they can’t change the reel in time, resulting in the products produced by the packaging machine being scattered on the ground, which has potential quality risks. When the curl is serious, the cover tape will break and the products will fall off. After installing the wrapping machine, the quality risks in this case can be 100% avoided.
2. The upgraded ARC can automatically paste product labels on reels, and automatically scan product labels, compare data with production systems, and prevent mixing. After upgrading, we can not only save more labor costs, but also avoid quality risks
(labels with bar codes are required).

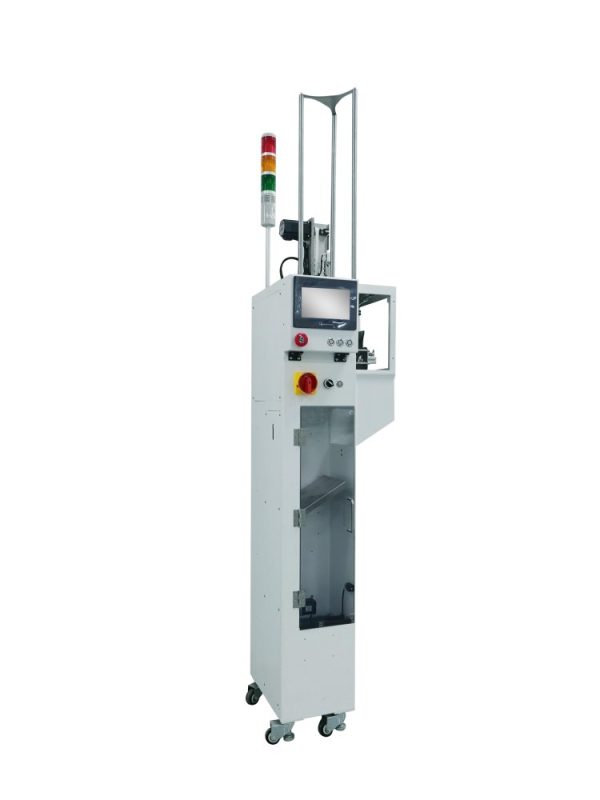

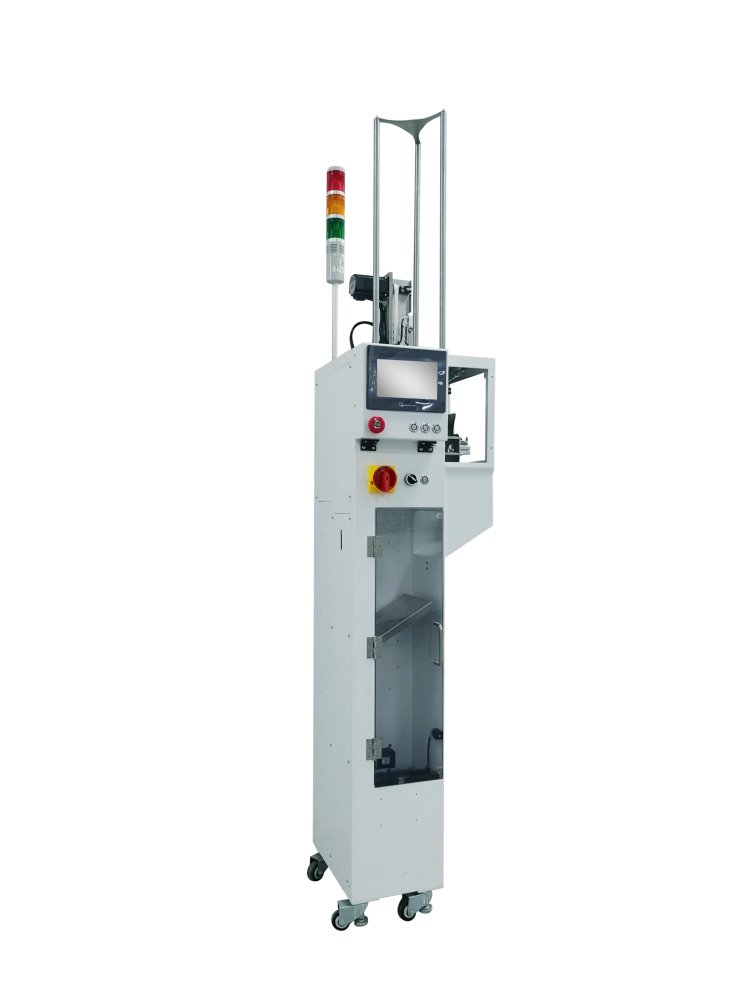

Mini model: ARC-M0708/ARC-M0712
Applicable specifications: 7-inch reel /8MM carrier tape
7 inch reel /12MM carrier tape
Equipment size: length 350* width 380* height 1765 mm

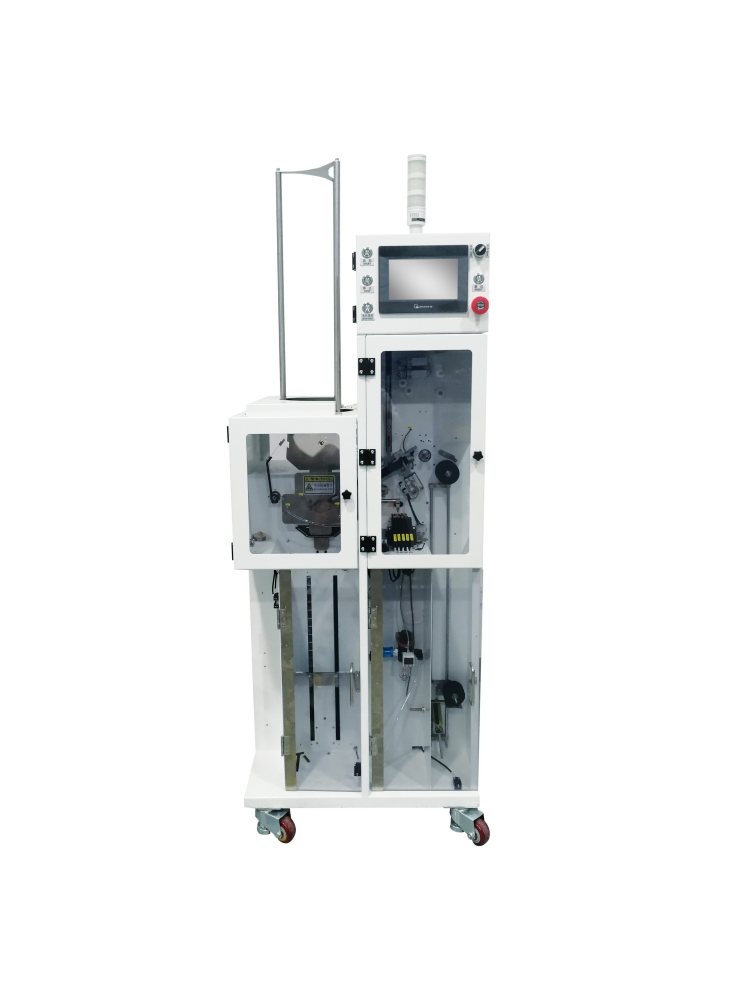

7inch model: ARC-0708/ARC-0712
Applicable specifications: 7-inch reel /8MM carrier tape
                                               7 inch reel /12MM carrier tape
Equipment size: length 600* width 500* height 1730 mm

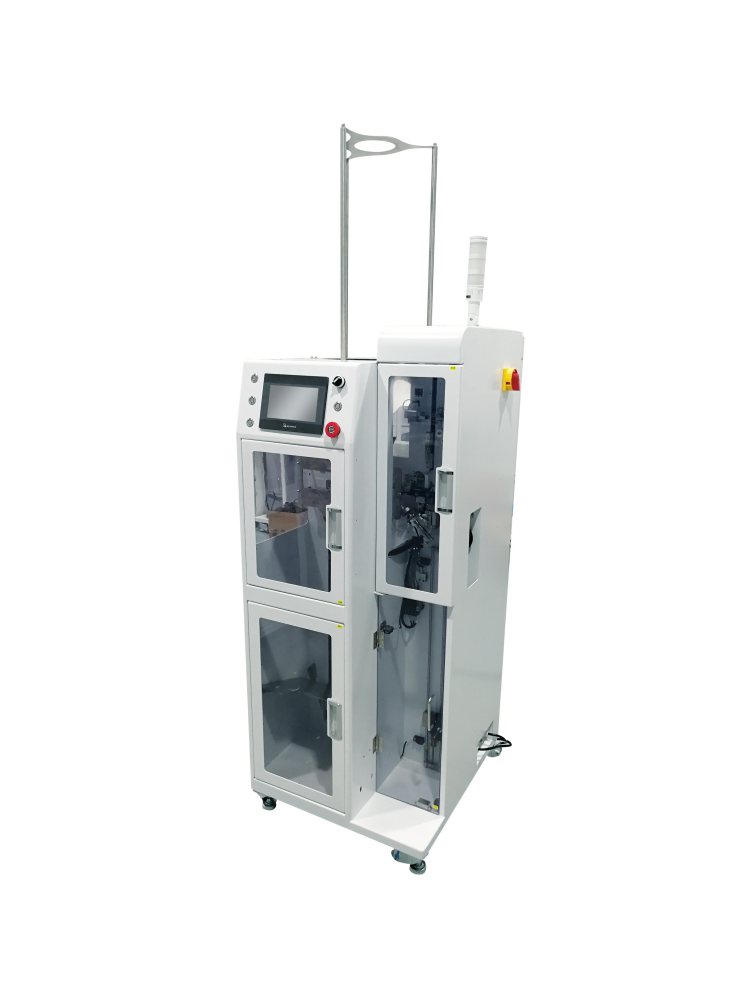

13inch model: ARC-1308/ARC-1312
Application specification: 13-inch reel /8MM carrier tape
13-inch reel /12MM carrier tape
Equipment size: length 600* width 650* height 1430 mm

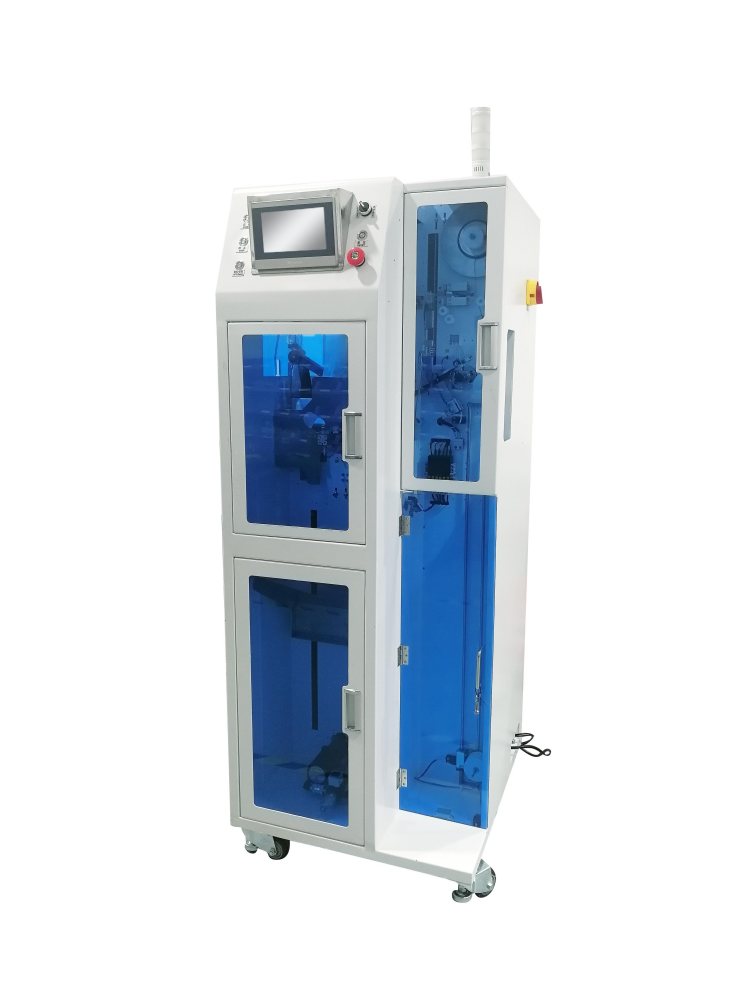

7/13inch compatible Model: ARC-07/130812
Applicable specifications: 7-inch reel /8MM carrier tape
                                             7 inch reel /12MM carrier tape
                                             13 inch reel /8MM carrier tape
                                             13-inch reel /12MM carrier tape
Equipment size: length 650* width 700* height 1620mm

Applicable Suitable for electronic components that can be taped.
Machine speed Meet the speed of tape and reel machine.
MTBA >1h
Fault rate <3%
Power 220V/50HZ 1KW
Air pressure 4 kg/cm (saturated pressure)

✓ Automatic reel change
✓ Automatic winding
✓ Automatic tail glue
✓ Automatic conversion of 7 “/13” reel
✓ Automatic belt threading
✓ Automatic cutting carrier tape
✓ Automatic counting carrier tape
✓ The functions of label scanning and labeling can be added as required.
