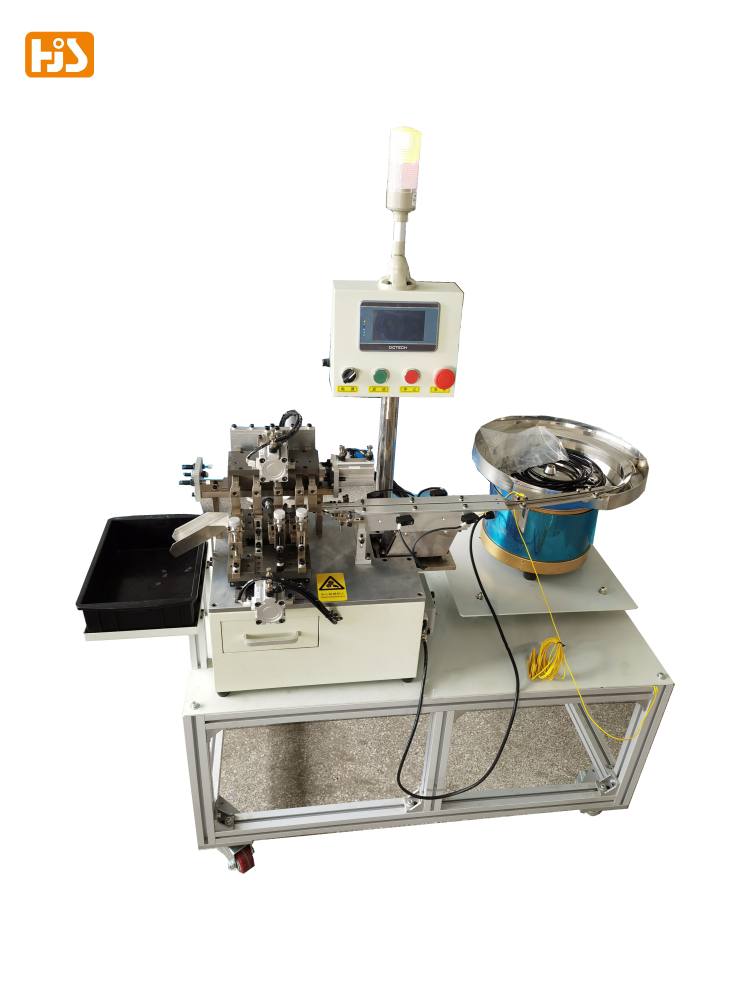

Hall IC Forming Machine HJC-3072

Equipment application

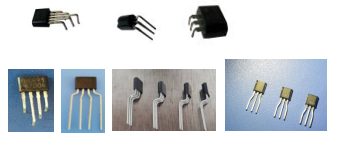

Used for bulk Hall IC molding

 Introduction

1. Automatic feeding of vibration plate ;

2, the electrical binding, powered cylinder, by the robot sequentially completed reclaimer, shaping , Cutting, shaping, polishing materials and other movements;

3. The foot length can be adjusted, with a reference scale, the knob can be adjusted up and down;

4. The molding shape is fixed by the mold, and different shapes require additional customized molds;

Hall IC forming machines are among the most crucial pieces of equipment you will require if you want to manufacture hall ICs of the highest quality. The top-of-the-line HJS Automation HJC-3072 hall IC forming machine is developed to deliver repeatable and dependable output.

The HJC-3072’s sophisticated heating and pressure management mechanism enables it to quickly and accurately shape hall ICs. With the help of this machine, you can be sure that your hall ICs will be produced precisely how you need them to be, resulting in the best possible performance and dependability.

Hall IC forming machine|Hall sensor forming machine|Hall IC lead cutting machine|IC lead forming|automatic Hall IC forming machine|Hall IC taping machine

Introduction

1. Automatic feeding of vibration plate ;

2, the electrical binding, powered cylinder, by the robot sequentially completed reclaimer, shaping Cutting, shaping, polishing materials and other movements;

3. The foot length can be adjusted, with a reference scale, the knob can be adjusted up and down;

4. The molding shape is fixed by the mold, and different shapes require additional customized molds;

5. PLC program control, touch screen to set parameters and operation ;

6. Touch screen man-machine interface setting parameters and operations ;

7. Alarm function for material shortage and material blocking ;

8. Equipped with photoelectric sensor, the feeding of vibrating plate and the work of the host can be intelligently controlled;

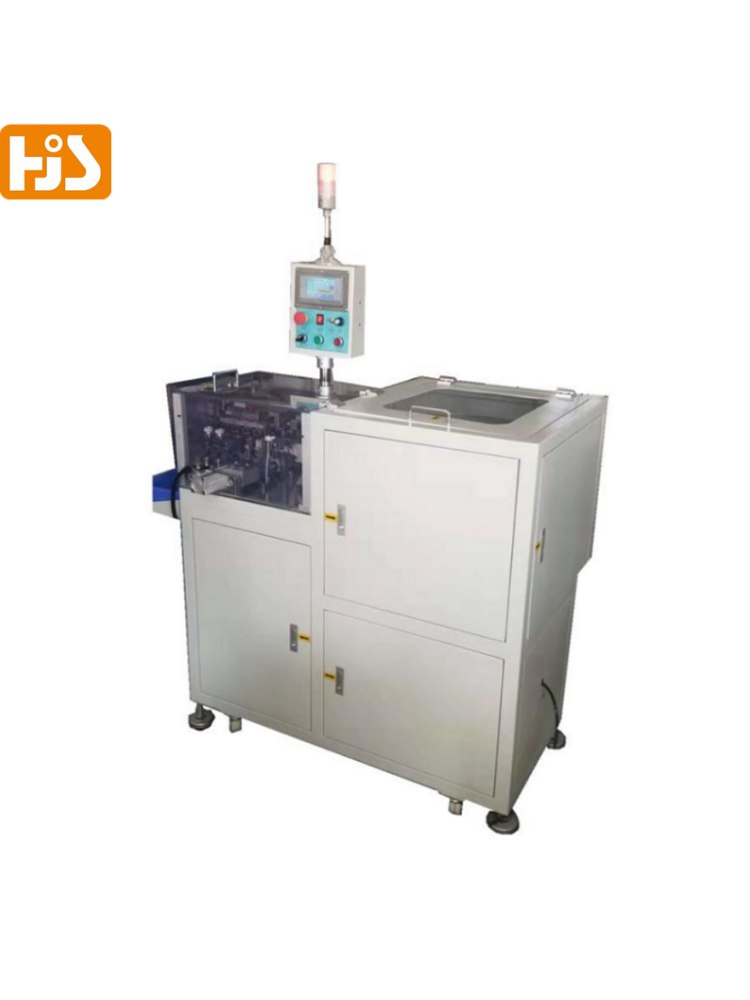

9. The vibrating plate is equipped with a soundproof cover, the noise of the equipment is controlled below 65 decibels, and the main unit is equipped with a safety cover and a safety door to ensure the safety performance of the equipment;

Tool material: Japan SKD11

Sheet metal process: high temperature powder spraying / surface anode / hard chrome

Power supply: 220VAC / 50HZ

Air source: 5-7mpa

Dimension: L1450xW950xH1500mm

Weight: 380Kg

Processing efficiency: 3000 pcs/

 Options:

  1. Ionizer can be added

please contact sales for video
